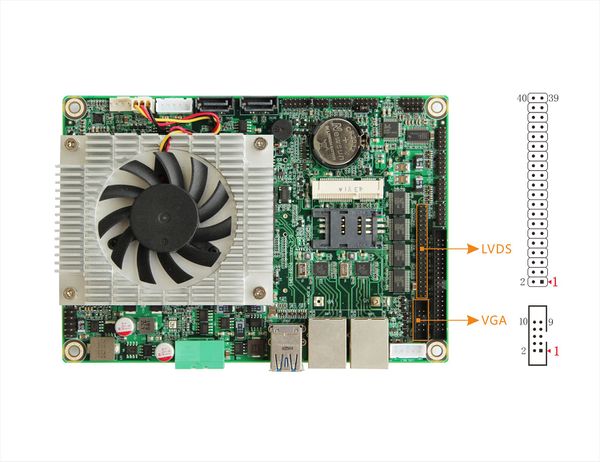

LVDS：
| 信号名称 | Pin | Pin | 信号名称 |
|---|---|---|---|
| VDD_PANEL | 1 | 2 | VDD_PANEL |
| GND | 3 | 4 | GND |
| LVDSA_DATA0# | 5 | 6 | LVDSB_DATA 0# |
| LVDSA_DATA0 | 7 | 8 | LVDSB_DATA0 |
| GND | 9 | 10 | GND |
| LVDSA_DATA1# | 11 | 12 | LVDSB_DATA1# |
| LVDSA_DATA1 | 13 | 14 | LVDSB_DATA1 |
| GND | 15 | 16 | GND |
| LVDSA_DATA2# | 17 | 18 | LVDSB_DATA2# |
| LVDSA_DATA2 | 19 | 20 | LVDSB_DATA2 |
| GND | 21 | 22 | GND |
| LVDSA_CLK# | 23 | 24 | LVDSB_CLK# |
| LVDSA_CLK | 25 | 26 | LVDSB_CLK |
| GND | 27 | 28 | GND |
| LVDS_DDC_DATA | 29 | 30 | LVDS_DDC_CLK |
| GND | 31 | 32 | GND |
| LVDSA_DATA3# | 33 | 34 | LVDSB_DATA3# |
| LVDSA_DATA3 | 35 | 36 | LVDSB_DATA3 |
| VCC3 | 37 | 38 | GND |
| 39 | 40 |
VGA：
| 信号名称 | Pin | Pin | 信号名称 |
|---|---|---|---|
| CRT_RED | 1 | 2 | GND |
| CRT_GREEN | 3 | 4 | CRT_DATA |
| CRT_BLUE | 5 | 6 | HSYNC |
| GND | 7 | 8 | VSYNC |
| VGA_PIN5 | 9 | 10 | CRT_CLK |
